Technical Information
Wheelbase
Ford Cargo 18.33 DC
4.250 mm
Ford Cargo 18.33 D
3.800 mm
Scania P 250
3.900mm /4.300mm
Mercedes Arocs 2032 K
3.600 mm
Mercedes Atego 1621 K
3.560 mm
Mercedes Atego 1518 K
3.560 mm
Iveco Euro Cargo 180E29
4.185 mm

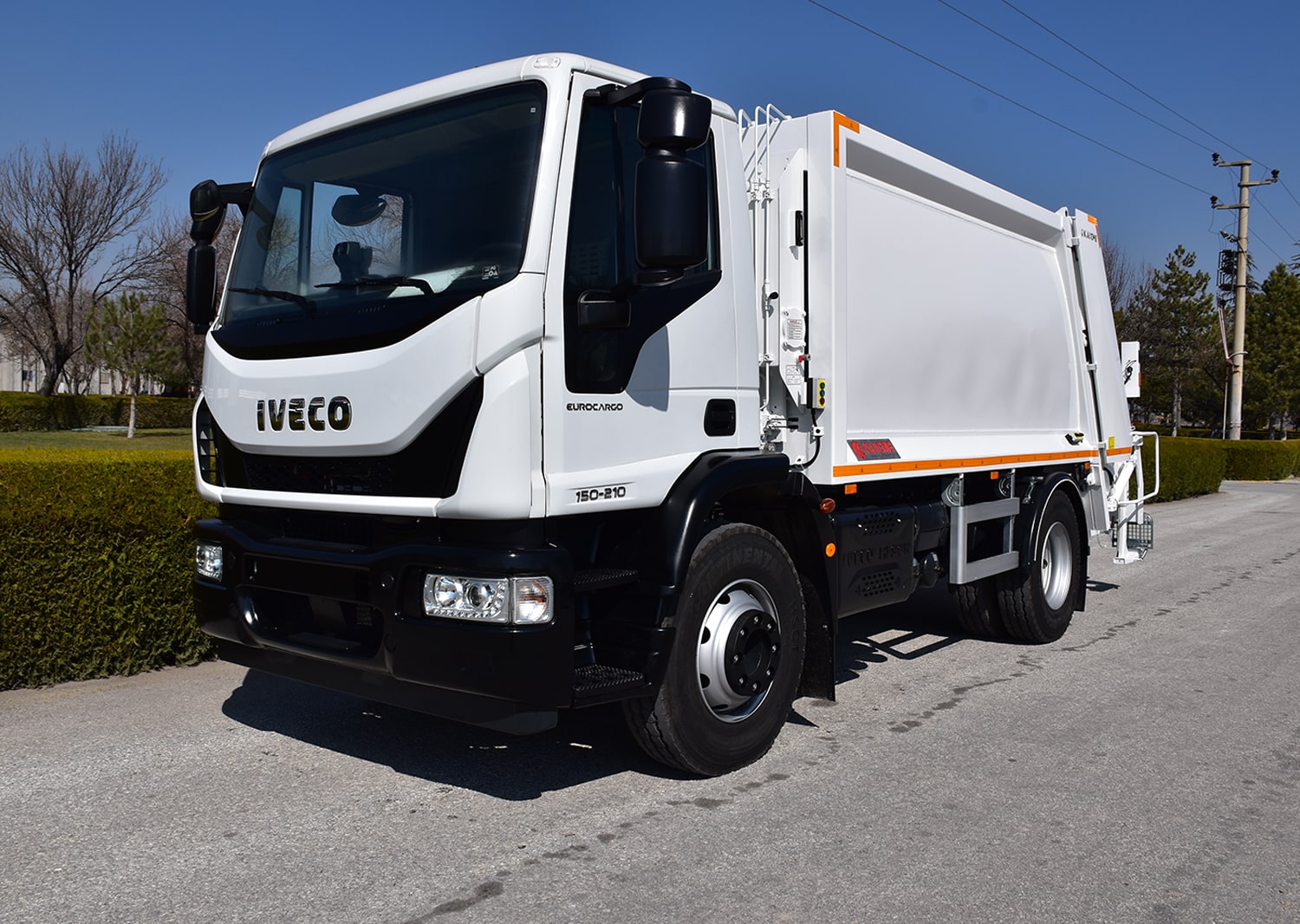

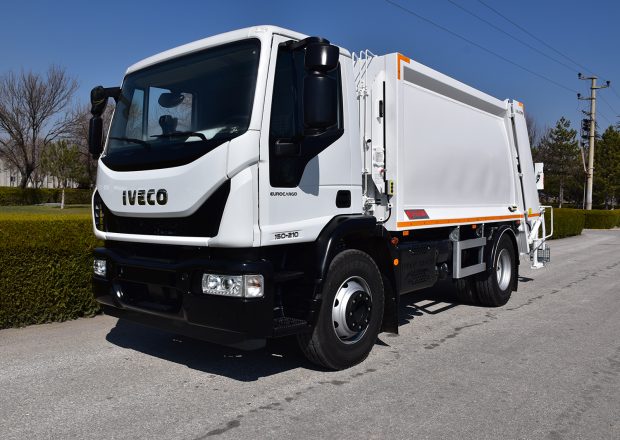

Iveco Euro Cargo 150E19
3.690 mm
Iveco Euro Cargo 100E19
3.330 mm
Isuzu NPR8
3.365 mm
Isuzu NPR 10
3.365 mm
Otokar Atlas
3.360 mm
Ford Cargo 2533 DC
4.250 mm + 1350mm
MAN TGS 28320
3.900 + 1350mm
Garbage Hopper Volume
Ford Cargo 18.33 DC
13/15+1,5m³
Ford Cargo 18.33 D
13+1,5m³
Scania P 250
13/15+1,5m3
Mercedes Arocs 2032 K
13/18+1,5m³
Mercedes Atego 1621 K
11/12/13+1,0m³
Mercedes Atego 1518 K
11+1m³
Iveco Euro Cargo 180E29
13/15+1,5m³
Iveco Euro Cargo 150E19
11+1m³
Iveco Euro Cargo 100E19
8+1m³
Isuzu NPR8
6/7+1m³
Isuzu NPR 10
7/8+1m³
Otokar Atlas
6/7+1m³
Ford Cargo 2533 DC
18/20+1,5m3
MAN TGS 28320
18/23+1,5m3
Garbage Hopper Technical Features
Vault Volume
6 – 32 m³
Back Vault Volume
0.8 – 2 m³
Base Sheet
3 – 5 mm ST-52 (S355J2) or equivalent
Side Sheets
3 – 5 mm ST-52 (S355J2) or equivalent

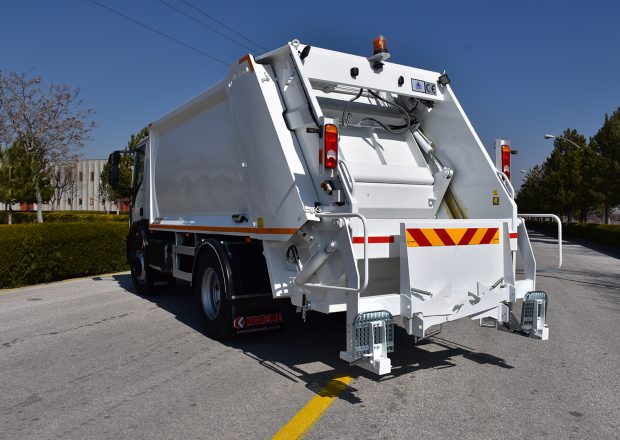

Container Lifting System
120 / 240 lt Plastik Kova, 0,4 / 0,8 / 1,1 m³ Konteyner tertibatlarından biri (DIN 30700 – EN840 göre)
Auxiliary Chassis
5 – 8 mm (reinforced) U Profile
Loading Height
1.000 – 1.400 mm
Waste Water Tank
80 – 150 lt (Options)
Arm Lifter System
Options (3-8 m³ for container)
Hydromotor - Winch System
Options (3-8 m³ for container)
Paint
Primer + Synthetic
Compression Ratio
5:1 / 6:1 (for domestic waste)
Garbage Box Hydraulic Features
Hydraulic Pump
36 – 90 cm³/d (cm³/rev)– maks. 1500 d/d (rpm)
Working Pressure
170 – 190 bar
Oil Tank
80 – 240 lt
P.T.O.
750 d/d (rpm) – 1500 d/d (rpm)
Working Time
20 – 35 sn (sec.)

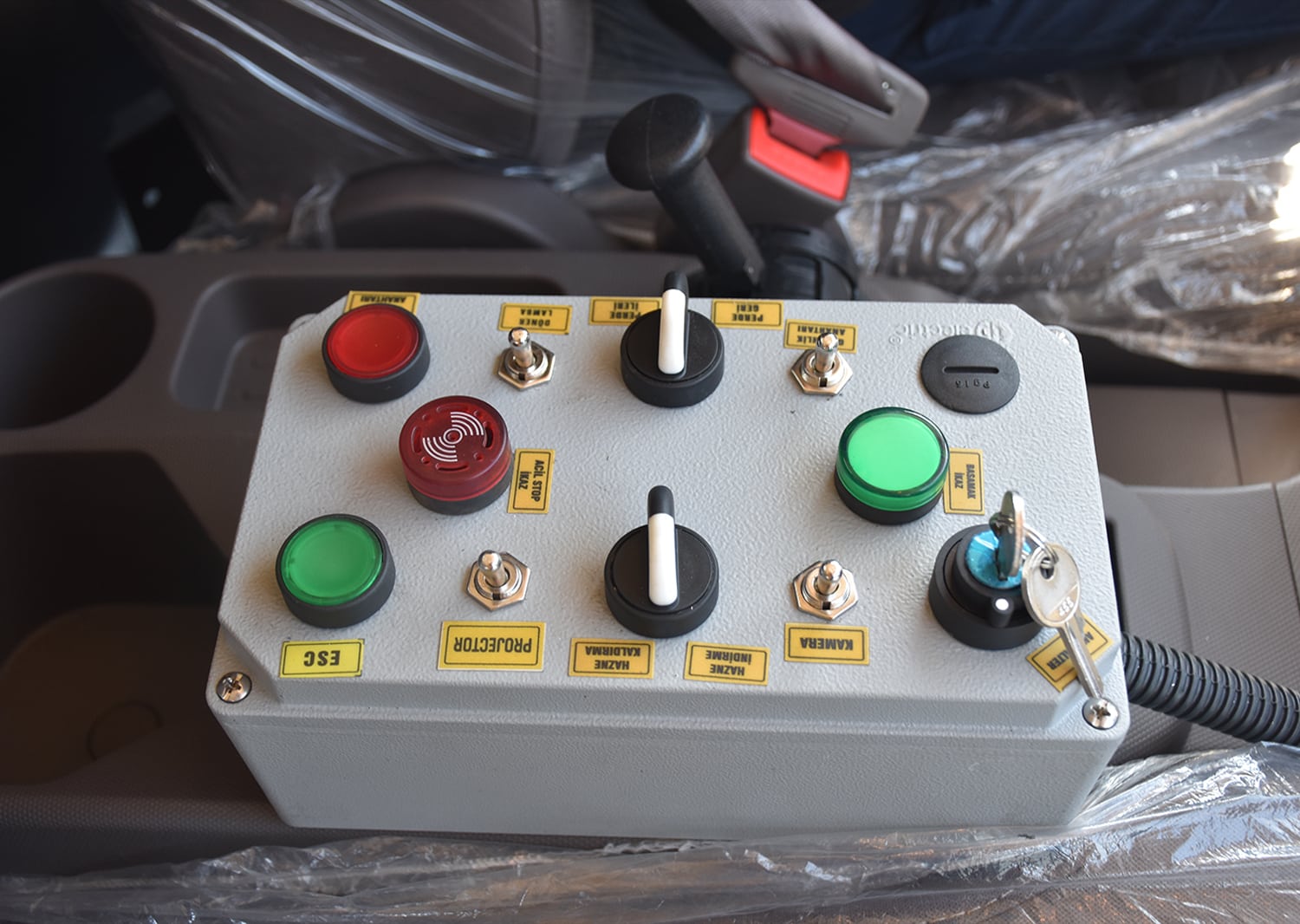

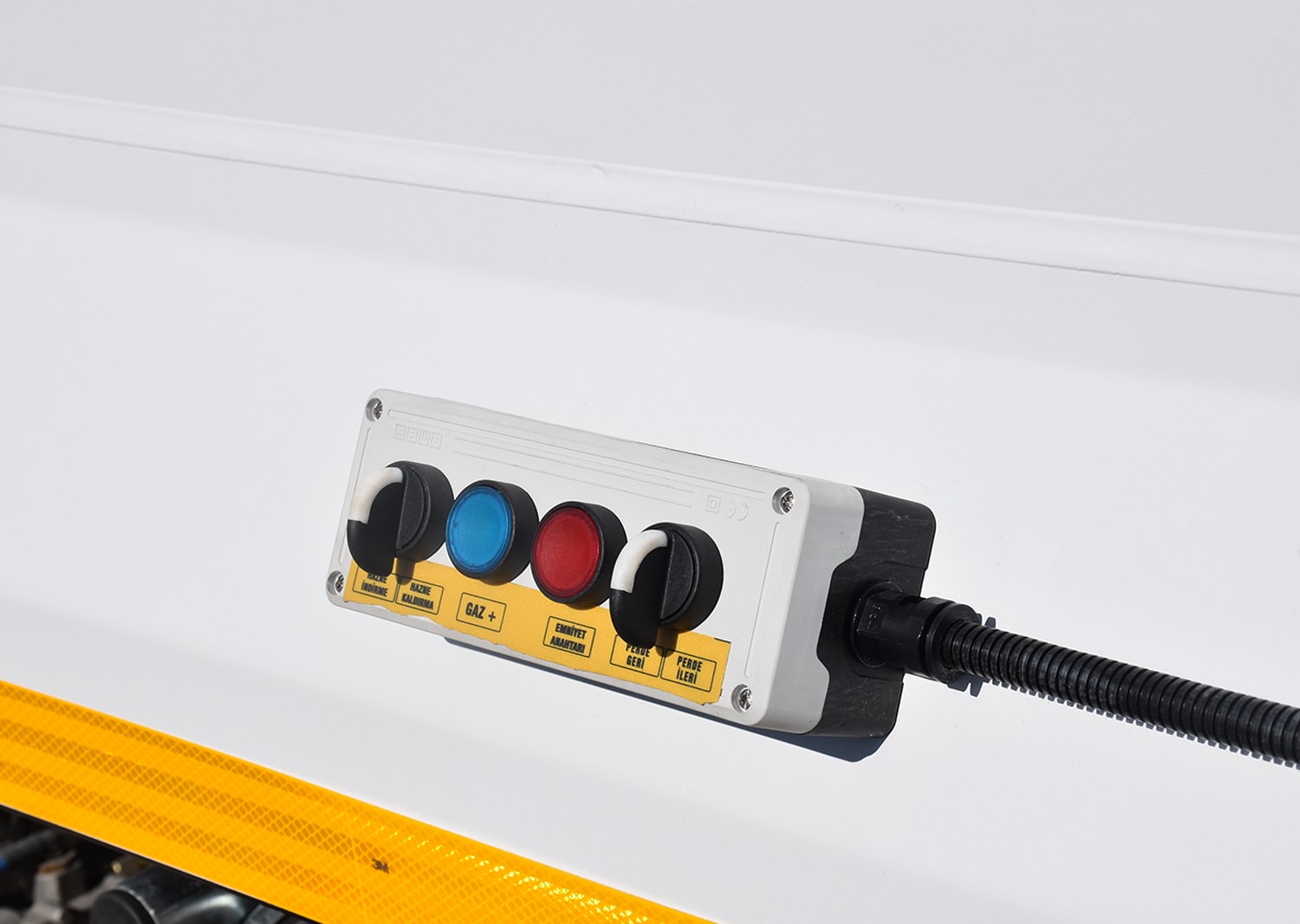

Cycle Control System
Automatic, Manual, Semi-Automatic
Number of Hydraulic Cylinders
9 Pieces (Varies According to Container Lifting Gear)
Capacity
KDM 6
6+1 m³
KDM 7
7+1 m³
KDM 8
8+1 m³
KDM 10
10+1 m³
KDM 13
13+1,5 m³
KDM 15
15+1,5 m³
KDM 18
18+1,5 m³
KDM 20
20+1,5 m³
KDM 22
22+1,5 m³
Compression Ratio
KDM 6
1:5
KDM 7
1:5
KDM 8
1:5
KDM 10
1:5
KDM 13
1:6
KDM 15
1:6
KDM 18
1:6
KDM 20
1:6
KDM 22
1:6
Payload Capacity
KDM 6
6 m³
KDM 7
7 m³
KDM 8
8 m³
KDM 10
10 m³
KDM 13
13 m³
KDM 15
15 m³
KDM 18
18 m³
KDM 20
20 m³
KDM 22
22 m³
Hopper Material
KDM 6
St-52
KDM 7
St-52
KDM 8
St-52
KDM 10
St-52
KDM 13
St-52
KDM 15
St-52
KDM 18
St-52
KDM 20
St-52
KDM 22
St-52
Hopper Capacity
KDM 6
1 m³ / St-52
KDM 7
1 m³ / St-52
KDM 8
1 m³ / St-52
KDM 10
1 m³ / St-52
KDM 13
1, 5³ / St-52
KDM 15
1, 5³ / St-52
KDM 18
1, 5³ / St-52
KDM 20
2 m³ / St-52
KDM 22
2 m³ / St-52
Compression System
KDM 6
Semi Automatic / Automatic
KDM 7
Semi Automatic / Automatic
KDM 8
Semi Automatic / Automatic
KDM 10
Semi Automatic / Automatic
KDM 13
Semi Automatic / Automatic
KDM 15
Semi Automatic / Automatic
KDM 18
Semi Automatic / Automatic
KDM 20
Semi Automatic / Automatic
KDM 22
Semi Automatic / Automatic
