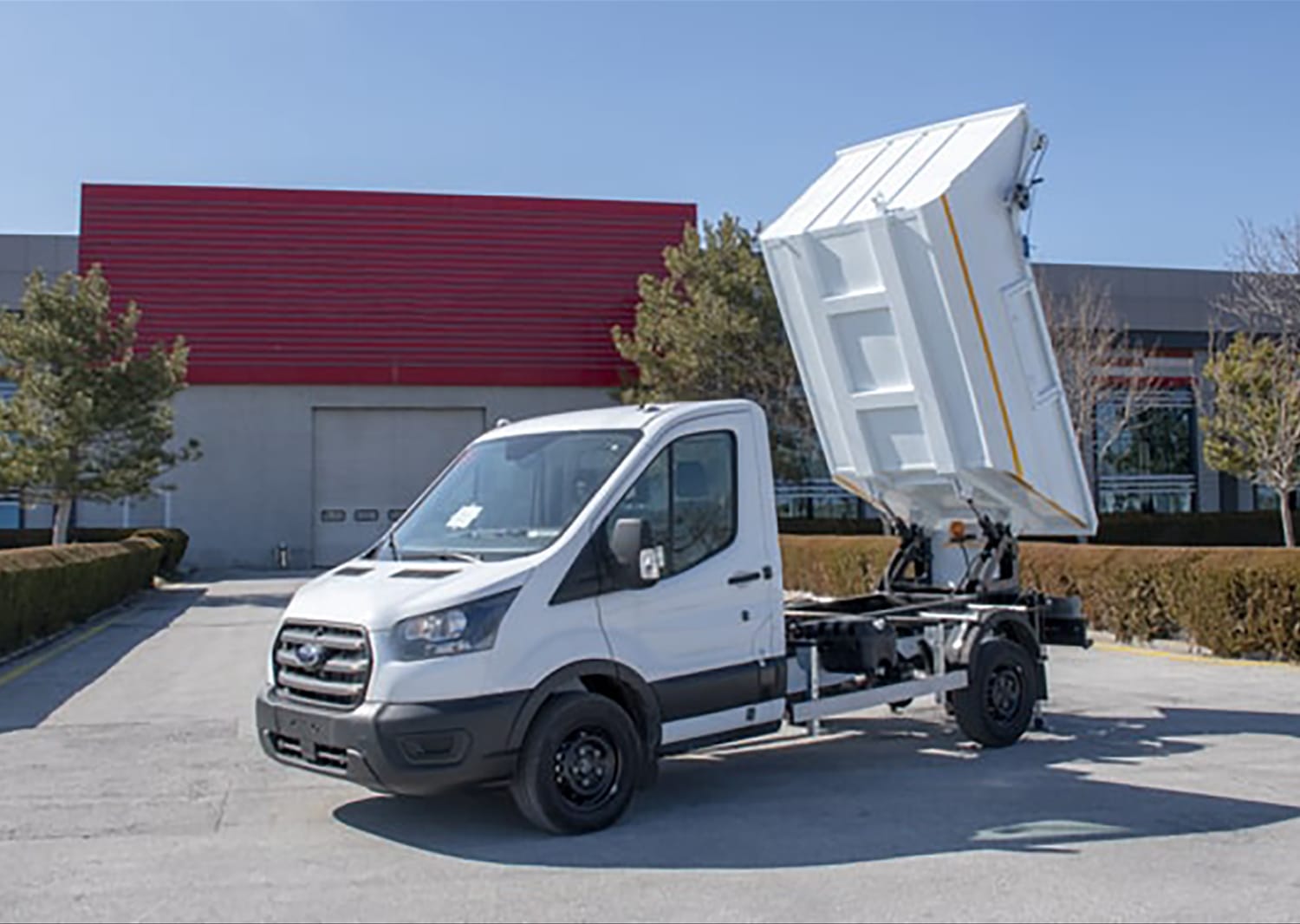

Mini Tipper & Garbage Taxi
Mini Tipper is used for supporting garbage collection where there is no vehicle entrance or adequate maneuvering areas. Inaddition, it does not need to go to the garbage collection center continuously by pouring the garbage it carries directly in to the hopper of a larger garbage truck.
Data
Technical Information
GENERAL INFORMATION
Hopper Volume
2 - 3,5 m³
Hopper weight
375 kg
Loading Capacity (max.)
750 - 1.300 kg
Floor
3 - 4 mm. ST-52
Sides
2 - 4 mm. ST-52
Outrigger
2 pcs. on rear
Loading Height
1.720 mm
Loading with Hand Height
1.430 mm
Lift Angle
45°
Working Pressure
120 - 180 bar
Working Time
24 - 40 s.
Working Voltage
12V DC (Battery Powered)
RECOMMENDED VEHICLES
TAVSİYE EDİLEN ARAÇLAR
Ford Transit - 330S-350M, Iveco Daily - 35S, Fiat Ducato - 2800S, Hyundai H Series - H100
