Technical Information
CAPACITY INFORMATION
Hopper volume
3,5 m³
Payload volume
3 m³
Payload capacity
2 - 3 ton (Based on chassis)
Water tank
900 lt. stainless steel (AISI304) integrated with hopper
Hydraulic reservoir
75 lt
AUXILIARY ENGINE INFORMATION
Brand - Model
2,2 lt 4 Cylinder Water Cooled Perkins Diesel Engine
Power
74 hp / 55 kW @ 2.800 rpm
Torque
270 Nm @ 1.800 rpm
Emmision
EU Stage V
Working speed
1.800 rpm
SWEEPERS EQUIPMENT
Side brush
Ø 320 mm - 200 dev/m. Hydraulic engine driven
Middle brush
Ø 400 mm x 1.300 mm - 160 dev/m. Hydraulic engine driven
Vacuum hose diameter
Ø 250 mm
Vacuum nozzle width
750 mm
Sweeping width
2.150 mm
GENERAL INFORMATION
Chassis requirement
Min 7 tons
Whellbase
3.300 - 3.500 mm (4x2)
Dump angle
50° ± 5°
Door opening angle
90° ± 5°
Filter mesh area
1,1 m²
Hydraulic pump
16,8 cc / rev
Sweeping speed
0 - 15 km/h
Sweeping capacity
32.250 m²/h
Hopper construction
Welded plain steel (Stainless steel optional)
FAN
Type
Heavy duty, dynamically balanced impeller with multivane corrosion resistance blades
Operation speed
2.700 - 3.400 rpm/m
Drive system
Torque convertor or clutch system
Gearbox ratio
1,8 : 1
CONTROL PANEL
Raised hopper warning
Auxiliary engine hour control
Engine temp hour
Engine speed hour

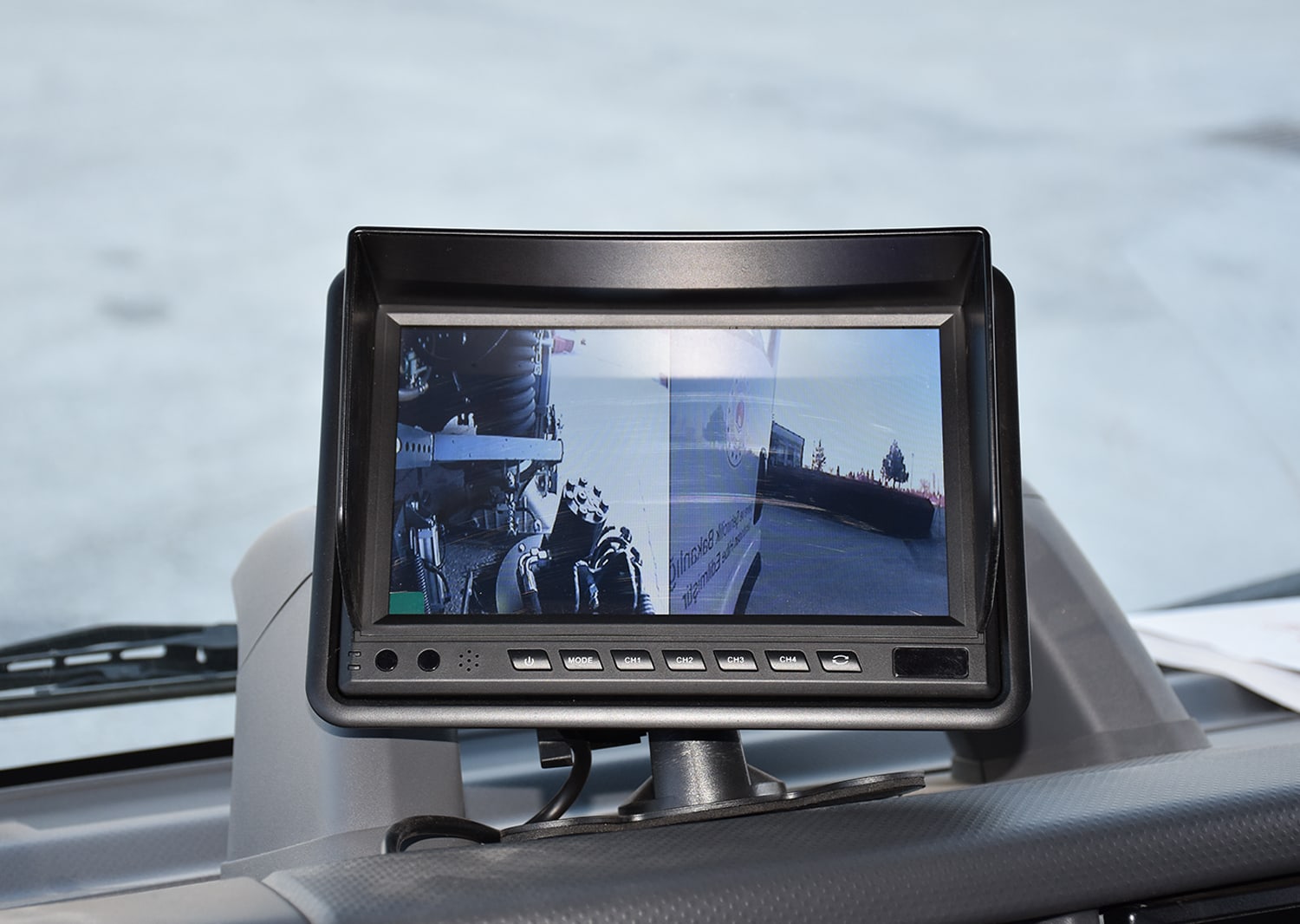

Camera system
Low level water indicator
OPTIONS
Wander hose with boom and trunking excess 5 meters long
Adjustable side brush speed
Simultaneous dual suction and sweeping 3.500mm sweeping width
Interior trim
Variable side brush positioning system
High pressure washing system
Front bumper road washing
Additional water tank (In case of cabin and superstructure area is available)
Magnet
