Road Sweeper 4,5 m³
Truck Mounted Vacuum Type Sweepers

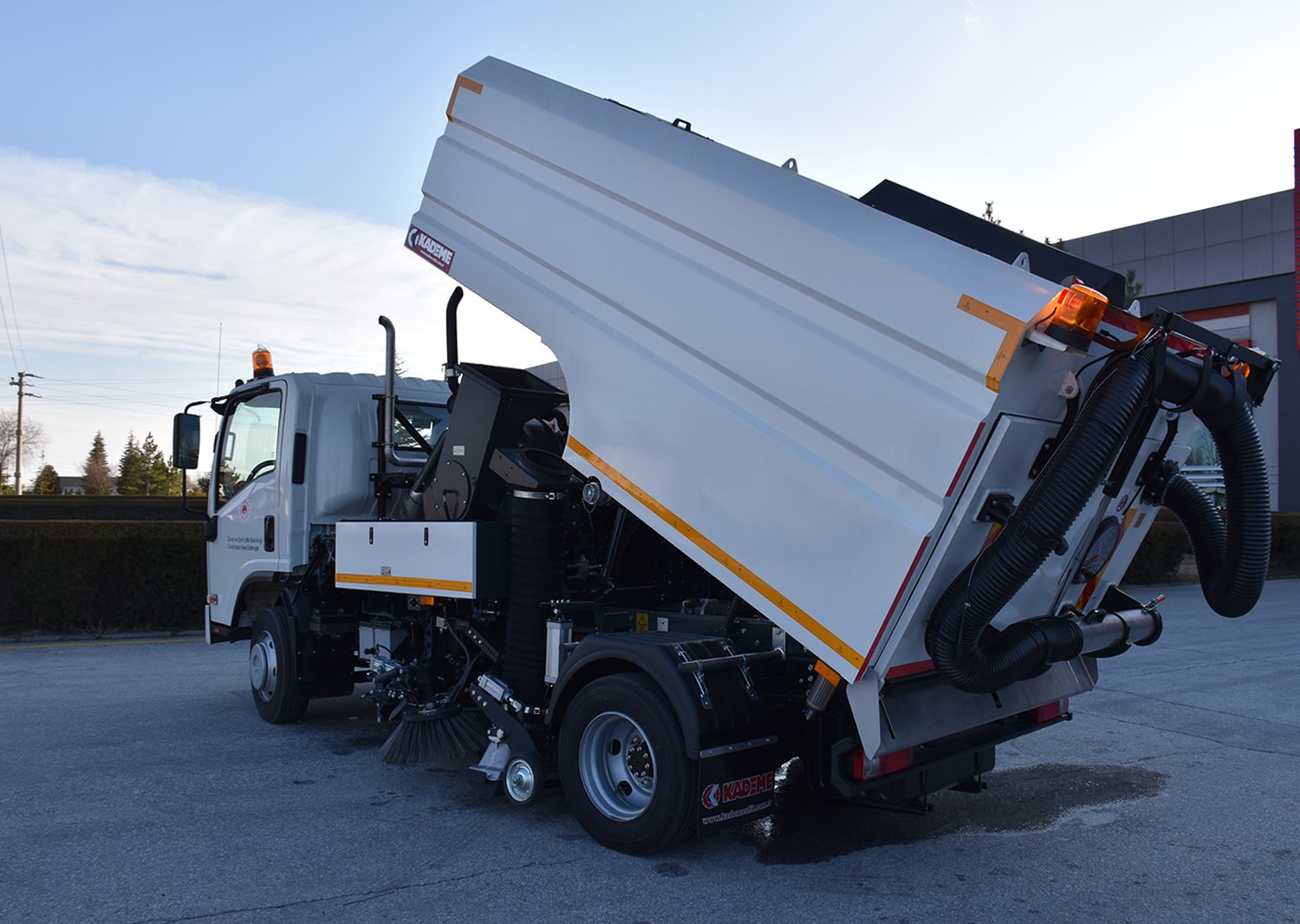

Truck Mounted Road Sweeper
The 4,5m³ Vacuum Type Road Sweeper continues the tradition of successful sweeper technology and with high quality materials and components, we ensure operational reliability and long service life.
Key Specifications
4,5 m³ hopper capacity
1.100 liters S.S integrated water tank
74 HP Powerful engine
2.150 mm sweeping width (3.200 mm optional dual sweeping)
Low cost of ownership
General Features
Integrated Water Tank
A stainless steel water tank with a 10% slope below the garbage pit is a great advantage to throw away the garbage.
User Friendly
Easy to understand and user-friendly control panel give advantage to the operator to control the whole system.
Auxiliary Engine
Standard 74 Hp Auxiliary Engine generates enough power for vacuuming. 74 Hp Engine can generate necessary power with low operation rpm with the low noise level and fuel saving.
Wired Remote Control
It the easy and safe to open and close the tailgate and lift the hopper from the rear side.
Camera System
Side and suction mouth cameras for better operational visibility.
Data
Technical Information
CAPACITY INFORMATION
Hopper volume
4,5 m³
Payload volume
4 m³
Payload capacity
2 - 3 ton (Based on chassis)
Water tank
1.100 lt stainless steel (AISI304) integrated with hopper
Hydraulic reservoir
75 lt
AUXILIARY ENGINE INFORMATION
Brand - Model
2,2 lt 4 Cylinder Water Cooled Perkins Diesel Engine
Power
74 hp / 55 kW @ 2.800 rpm
Torque
270 Nm @ 1.800 rpm
Emmision
EU Stage V
Working speed
1.800 rpm
SWEEPERS EQUIPMENT
Side brush
Ø 320 mm - 200 dev/m. Hydraulic engine drivenØ 320 mm - 200 dev/dk. Hidrolik motor tahrikli
Middle brush
Ø 400 mm x 1.300 mm - 160 dev/m. Hydraulic engine drivenØ 400 mm x 1.300 mm - 160 dev / dk. Hidrolik motor tahrikli
Vacuum hose diameter
Ø 250 mm
Vacuum nozzle width
750 mm
Sweeping width
2.150 mm
GENERAL INFORMATION
Chassis requirement
Minimum 8 ton
Whellbase
3.300 - 3.500 mm (4x2)
Dump angle
50° ± 5°
Door opening angle
90° ± 5°
Filter mesh area
1,1 m²
Hydraulic pump
16,8 cc / rev
Sweeping speed
0 - 15 km/h
Sweeping capacity
32.250 m²/h
Hopper construction
Welded plain steel (Stainless steel optional)
FAN
Type
Heavy duty, dynamically balanced impeller with multivane corrosion resistance blades
Operation speed
2.700 - 3.400 dev/m
Drive system
Gearbox ratio
1,8 : 1
CONTROL PANEL
Raised hopper warning
Auxiliary engine hour control
Engine temp hour
Engine speed hour
Camera system
Low level water indicator
OPTIONS
Wander hose with boom and trunking excess 5 meters long
Adjustable side brush speed
Simultaneous dual suction and sweeping 3.500mm sweeping width
Interior trim
Variable side brush positioning system
High pressure washing system
Front bumper road washing
Additional water tank (In case of cabin and superstructure area is available)
Magnet
